Bothroyd Court Drainage Upgrade

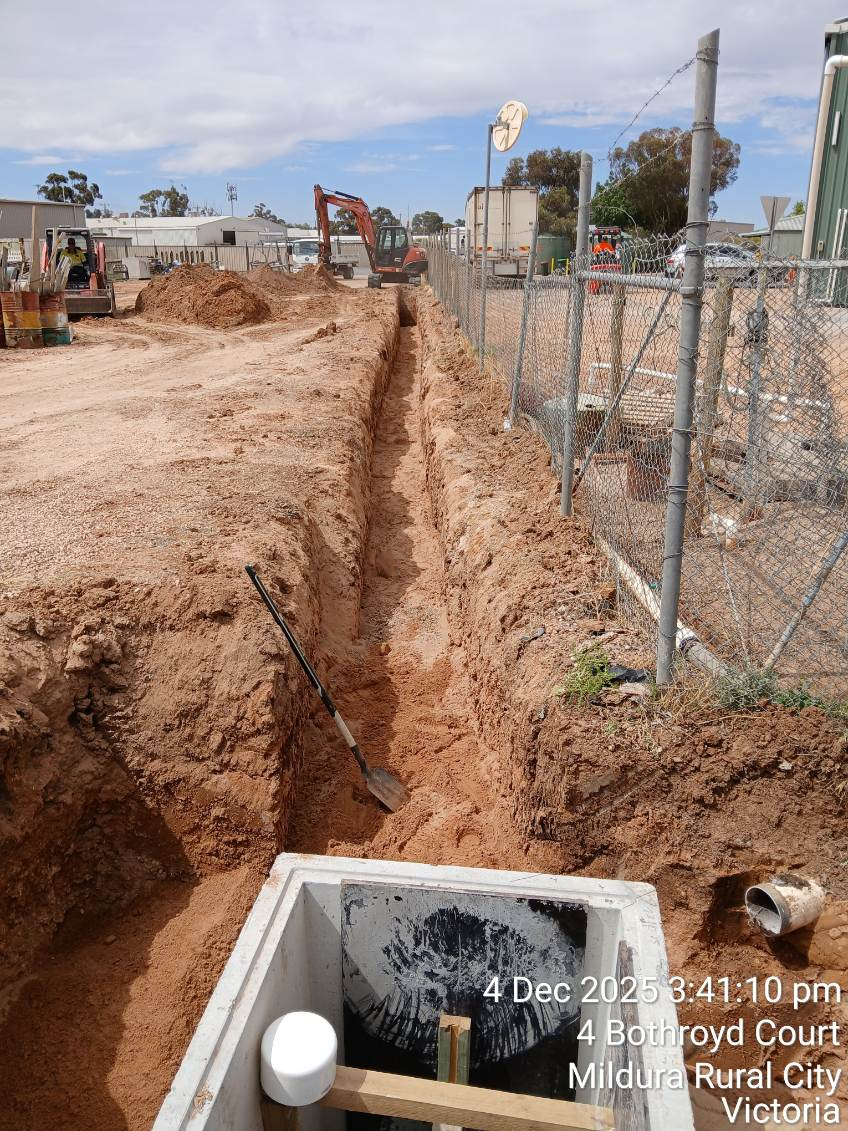

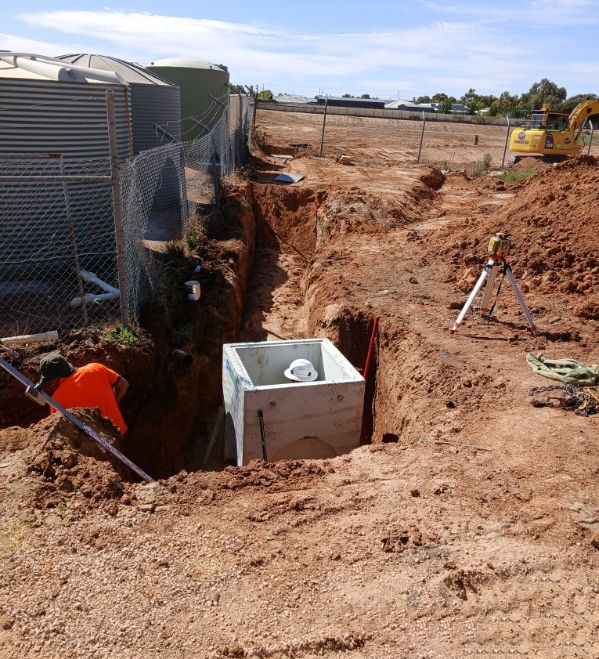

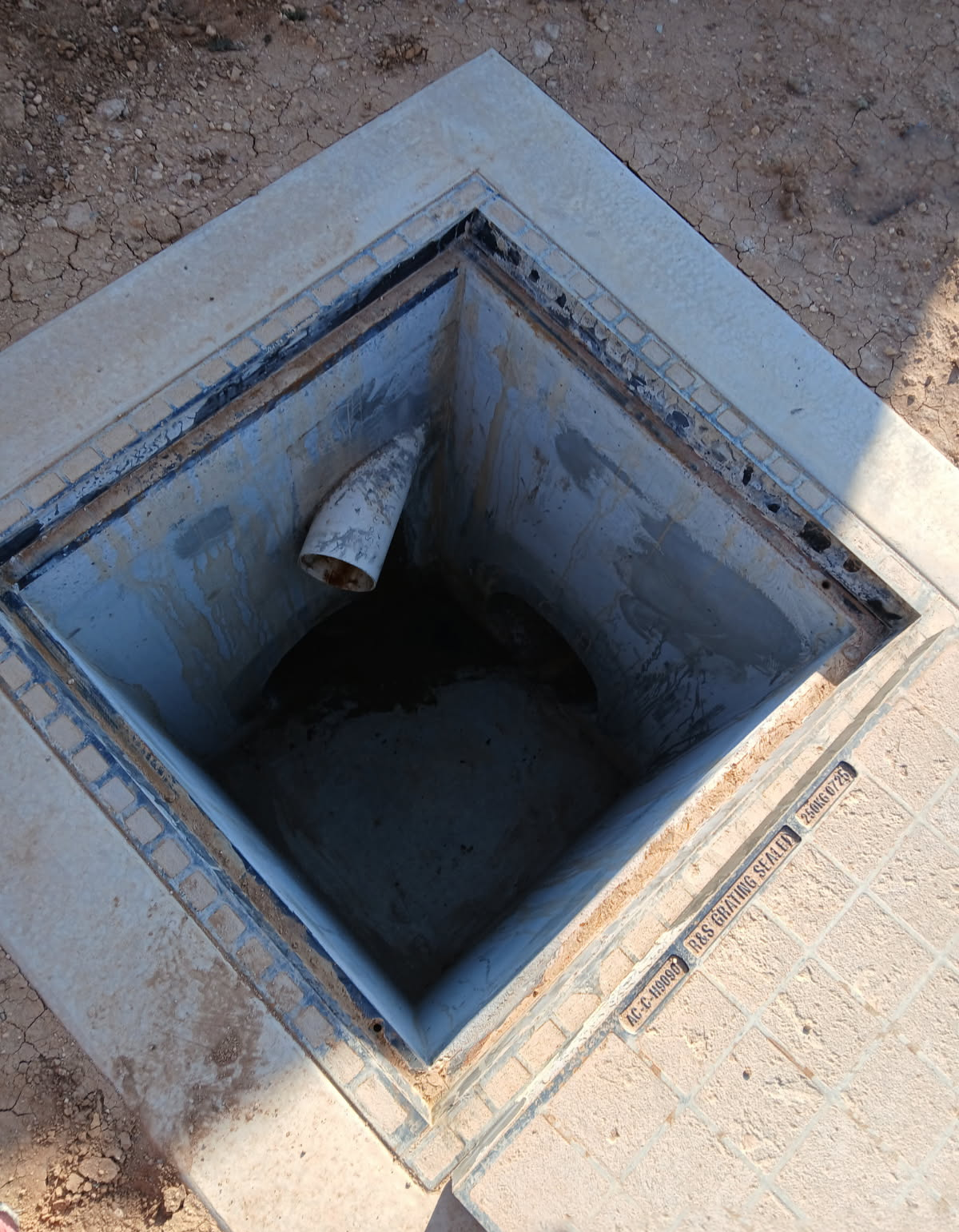

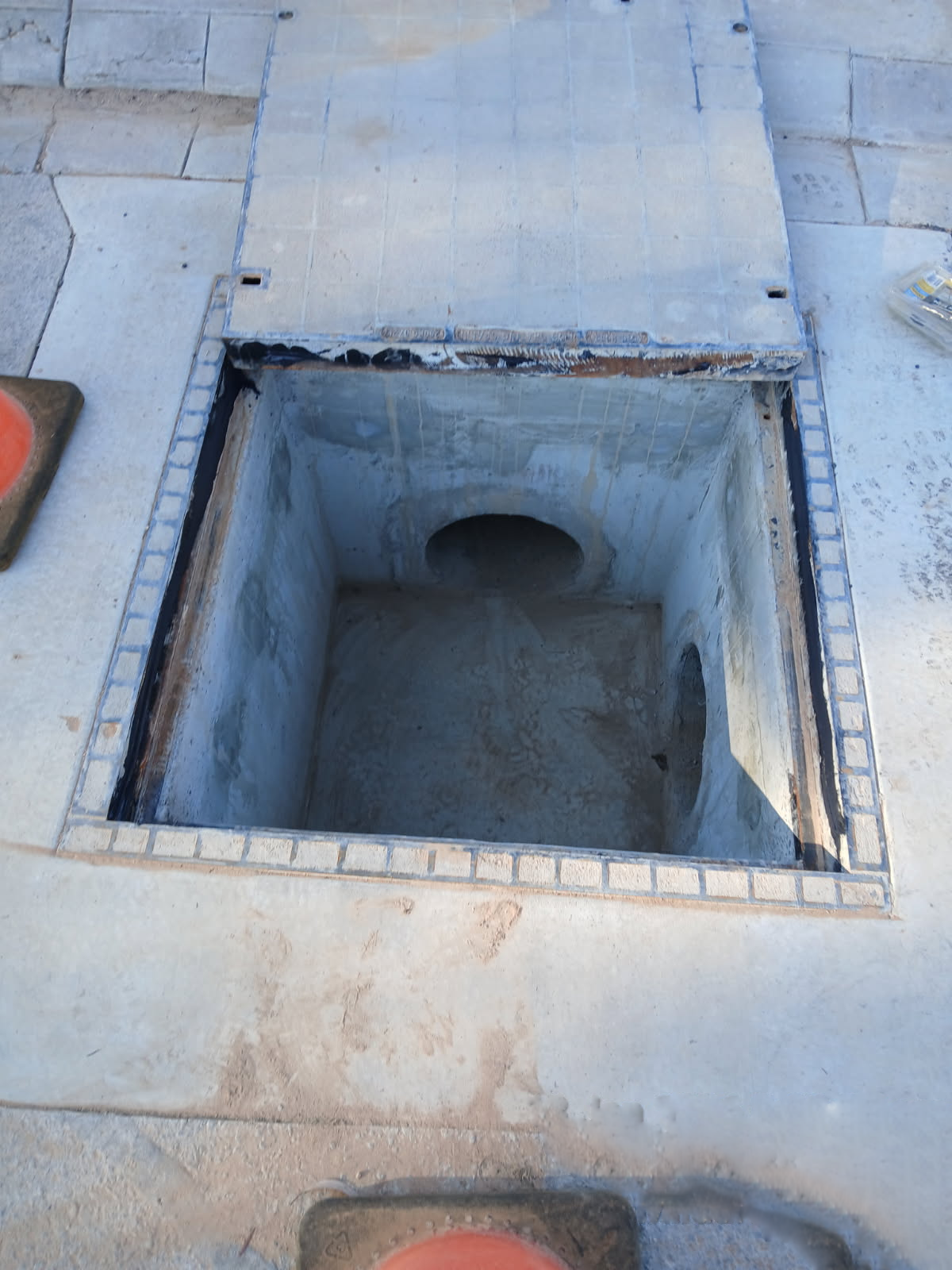

This project involved replacing the existing 150mm-diameter PVC pipe with over 100m of recycled plastic pipe, ranging from 450mm to 375mm in diameter, along with the installation of three junction pits, one side entry pit and a headwall to improve stormwater flow into the nearby drainage reserve. Sections of an existing driveway and kerbing were required to be removed to facilitate the installation of the new pipe. Upon completion, the driveway and kerbing were reinstated to match the original layout.
